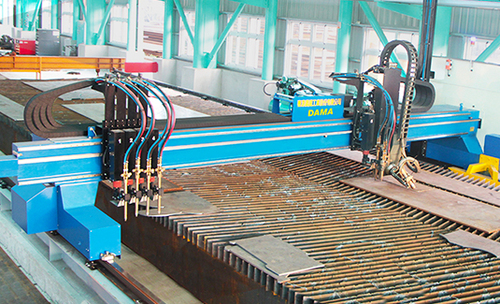

mommentum djaja - dama - Plasma Bevel Cutting Machine - CTR 361

Code pro015
CTR 361

  1. DAMA plasma cutting bevel system is capable of cutting bevel preparation including single, double cut bevels such as the V,Y bevel.
  2. DAMA provide Zero Offset Bevel Head. The head works by rotating the torch around the end of the cutting tip which means the angle of the cut can be changed without the need to offset the machine beam. This results in much simpler and faster control over the angle of the plasma.
  3. No loop cut when bevel angle ≦30o
  4. Blind bevel or variable angle bevel.
  5. No cable twist.
  6. Protection:
    • Torch sensor break away protection.
    • Breakaway-ring protection.
    • Arc stop detection.
Model Plasma bevel
Effective cutting width (mm) 2500 3100 4000 5000 6000 7000 8000 9000
Rails span (mm) 3500 4100 5000 6000 7000 8000 9000 10000
Effective cutting length on request
CNC controller Farley PDF TS
Plasma HPR-130XD or HPR-260XD or HPR-400XD
Software SigmaNest
Plasma Bevel head DAMA Zero offset bevel head
Option 1.Oxy-Fuel cutting kit:
.One Oxy-Fuel torch with motorized torch lifter and station
Regulator & pressure gauge and manifold
.Oxy-Fuel cutting logic sequence control & operation panel
2.Add Motorized Oxy-Fuel torch
3.Oxy-Fuel cutting torch height sensor (capacitive)
4.Zinc Powder marking torch
5.Warter spray
6.Electrical ignition unit
7.Rail's extension unit : Per 3000mm/unit
