Custom-K Regulator series (Standard type)

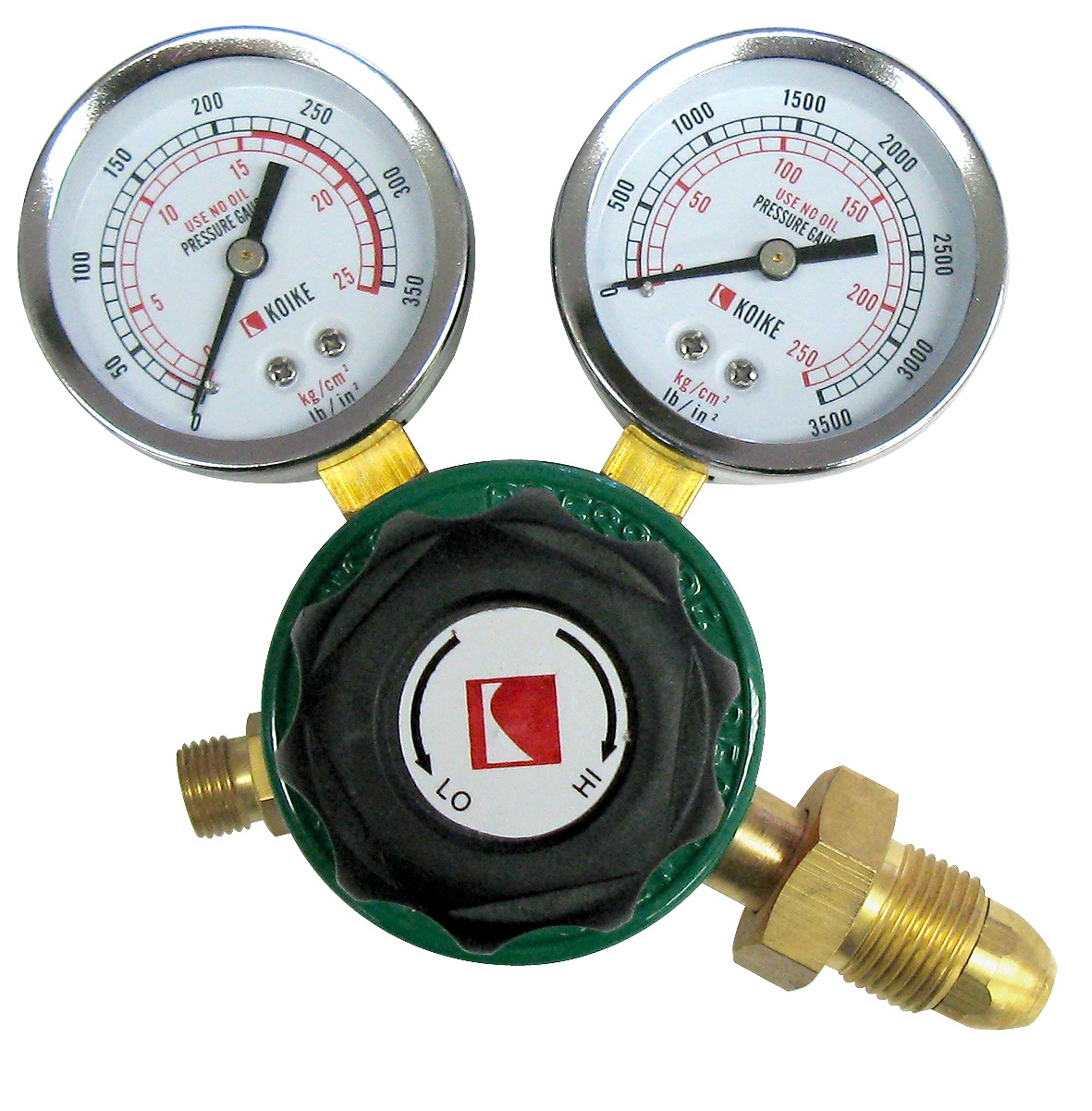

CUSTOM-K101

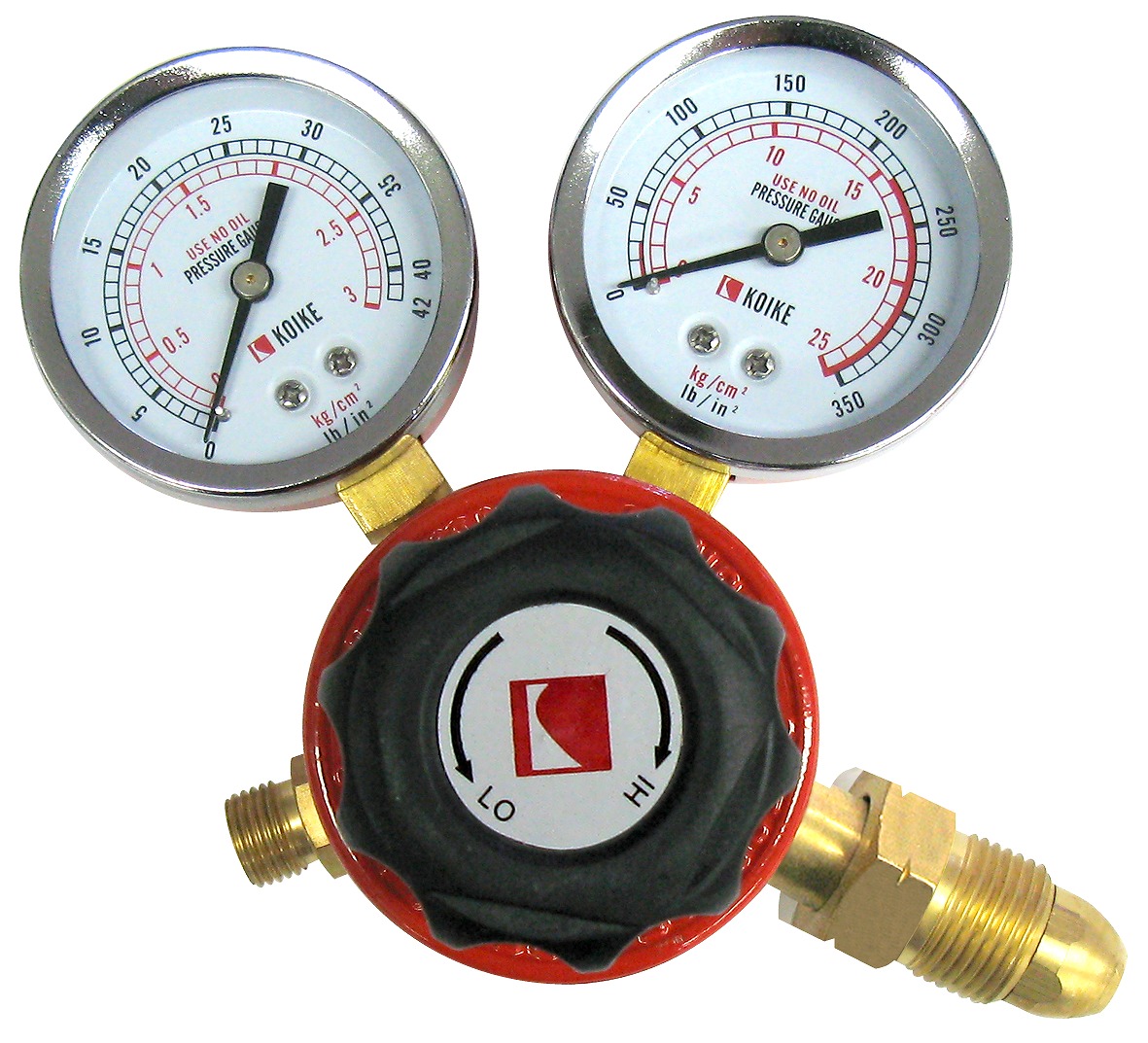

CUSTOM-K202
CUSTOM-K206

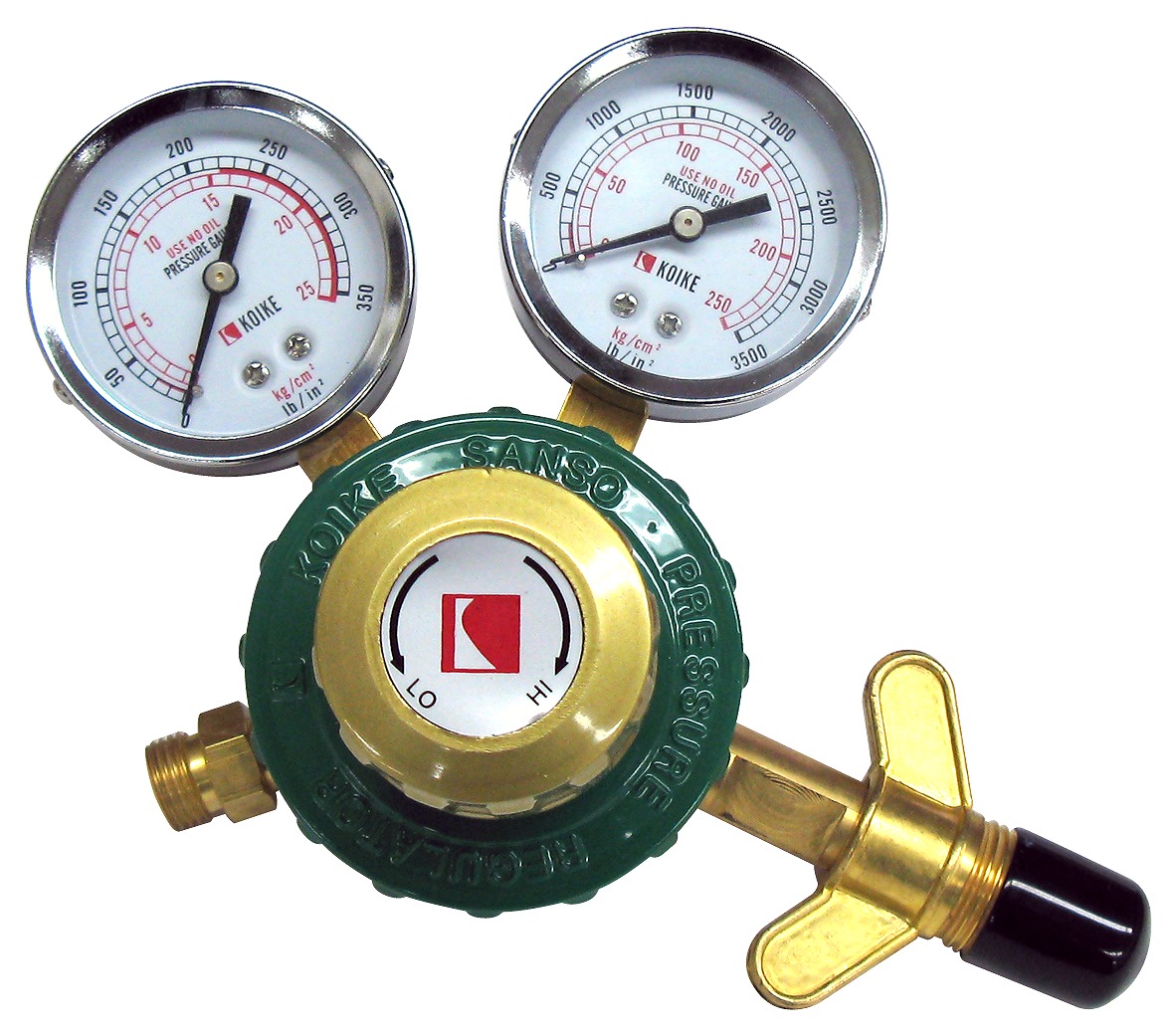

Safety Gold-V Regulator series
Safety Gold-V Regulator (Oxygen)
Safety Gold-V Regulator (Acetylen)
| Model | Gas | Pressure gauge (MPa) | Flow capacity | Body weight | ||
| Inlet | Outlet | Max. Delivery pressure | [Pressure] | (kg) | ||
| Safety gold-V (Oxygen) | Oxygen | 25* | 2.5 | 0.99 | 35Nm 3 /h | 1.4 |
| [0.8MPa] | ||||||
| Safety gold-V (Acetylene) | Acetylene | 2.5 | 0.2 | 0.098 | 7Nm 3 /h | 1.8 |
| [0.05MPa] | ||||||
*Maximum allowable inlet pressure for Safety gold-V regulator is as shown below.
Safety gold-V for Oxygen: 15Mpa, Safety gold-V for Acetylene: 2.5Mpa
Safety Custom II Regulator series

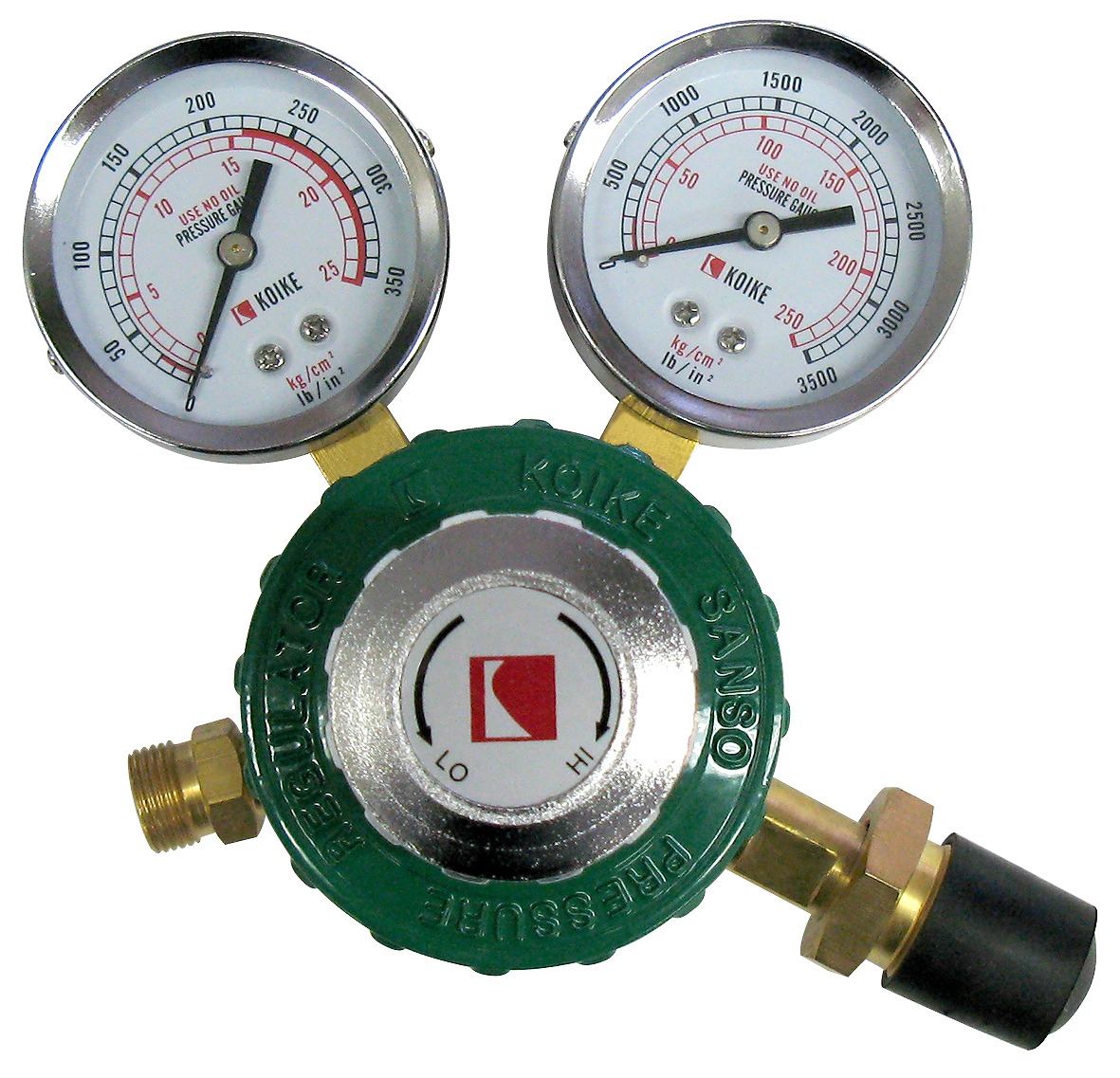

Safety Custom-II
Regulator (Oxygen)

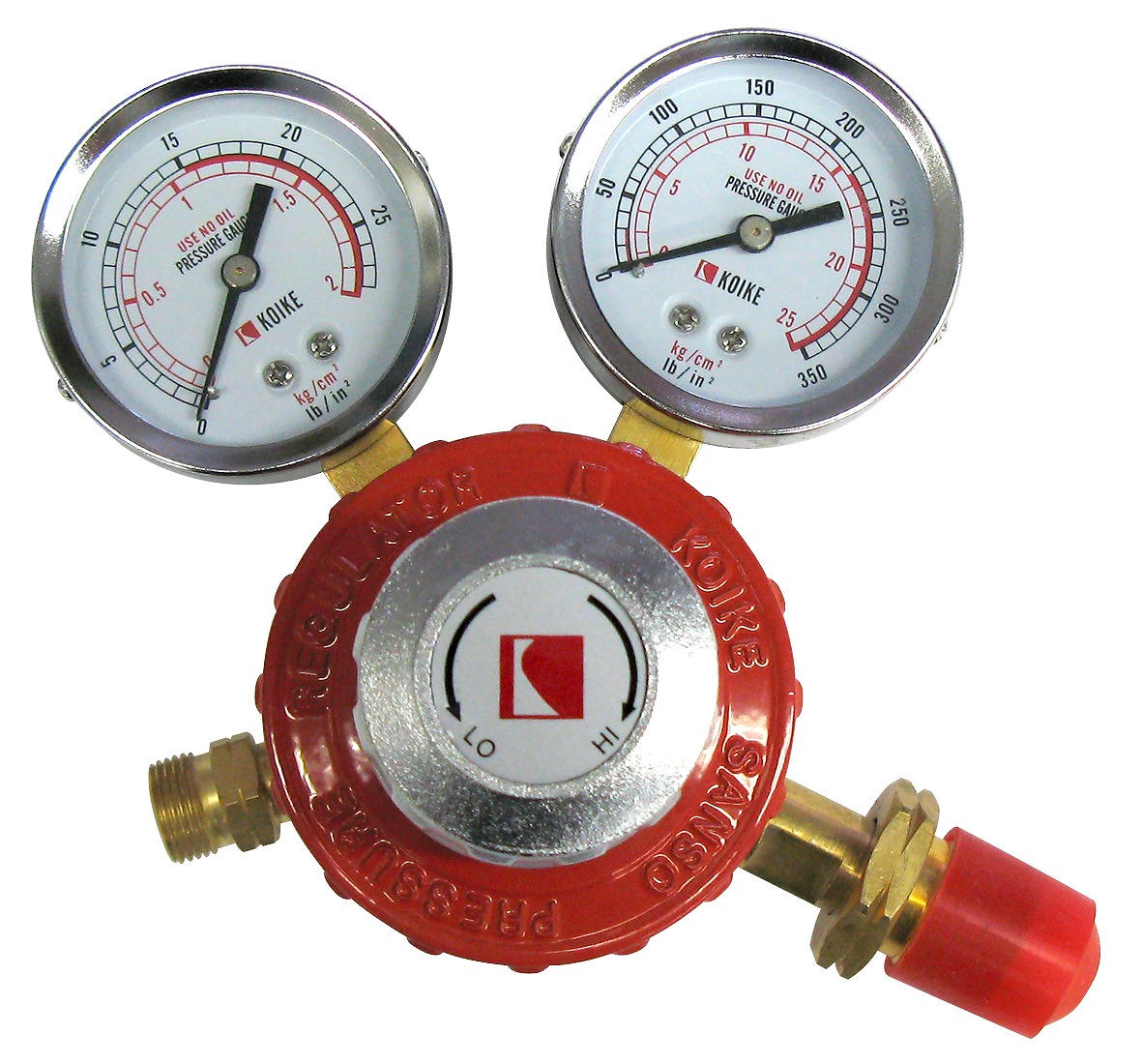

Safety Custom-II
Regulator (Acetylen)

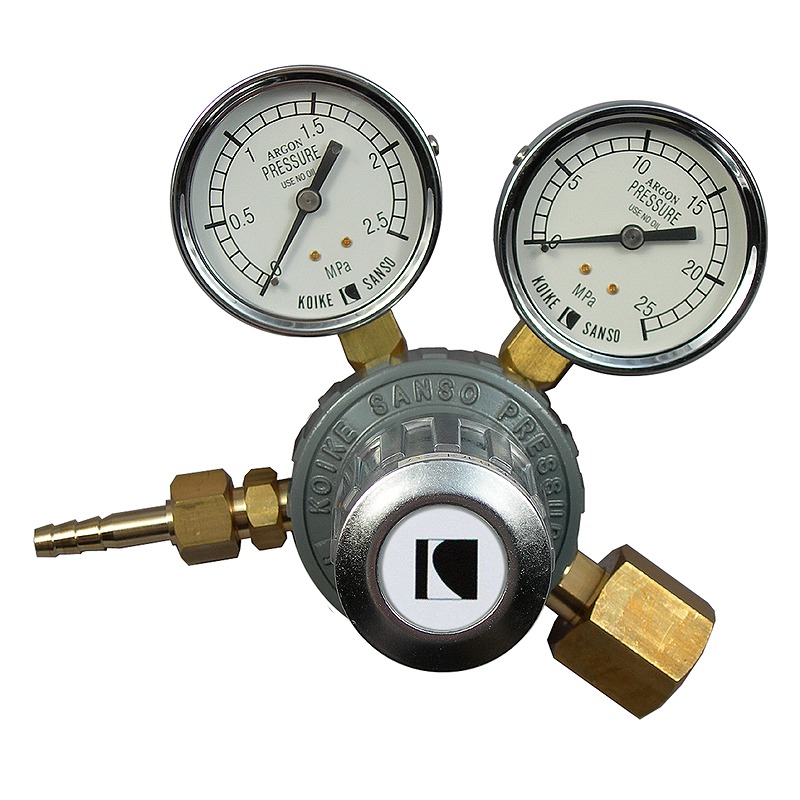

Sefety Custom
Regulator (Argon)
| Model | Gas | Pressure gauge (MPa) | Flow capacity | Body weight | ||
| Inlet | Outlet | Max. Delivery pressure | [Pressure] | (kg) | ||
| Safety custom-II (Oxygen) | Oxygen | 25* | 2.5 | 0.99 | 35Nm 3 /h | 1.4 |
| [0.8MPa] | ||||||
| Safety custom-II (Acetylene) | Acetylene | 2.5 | 0.2 | 0.098 | 7Nm 3 /h | 1.8 |
| [0.05MPa] | ||||||
| Safety custom ( Others) | Others | 35 | 2.5 | 0.99 | 35Nm 3 /h | 1.3 |
| [0.8MPa] | ||||||
*Maximum allowable inlet pressure for Safety custom-II regulator is as shown below.
Safety custom-II for Oxygen: 15Mpa, Safety custom-II for Acetylene: 2.5Mpa
Regulators for Special Apprication
CWH-25F (CO2)
Regulator (Oxygen)
| For | CO2 Cylinder |
| Inlet pressure | 12.0 Mpa Max |
| Delivery pressure | 0.2Mpa (Fixed) |
| Pressure gauge | 0.5 Mpa |
| Flow capacity | 0 - 25 NL/min |
| Body weight | 2.45kg |
