Description

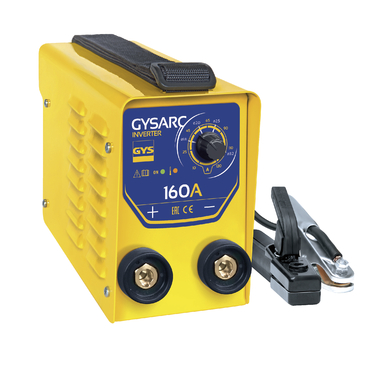

The GYSARC 160 is a single phase inverter welding machine for SMAW (MMA) welding. Manufactured using the latest IGBT inverter technology, it has excellent welding characteristics and arc stability.
MMA Welding
- Weld most coated electrodes: rutile, stainless steel, cast iron and basic (up to Ø 4.0 mm).
INVERTER TECHNOLOGY
- Immediate arcing thanks to high no-load voltage.
- Constant welding power.
- The continuous current makes for a very soft arc start.
- High stability welding current despite varying power supply voltages.
WELDING FEATURES
-
Hot Start :
easy arc ignition.
-
Arc Force :
allows adjustment of the current for various welding conditions and jobs.
-
Antisticking :
allows easier striking of the arc and minimises the risk of the welding rod sticking to the material.
SAFE
- Optimised machine cooling with thermal protection.
- Protected against overcurrent.
SAFE
- Ultra Lightweight (2.9 kg)
- Compact - its size means it can be stored anywhere (shelf, workstation, etc)
- Easy to carry using the strap as a handle or on the shoulder.
50/60hz
230 V 1~
16A
I2
MMA
10 -> 160
INTEGRATED TECHNOLOGY
HS
AF
ANTI-STICKING
.
.
.
MMA
EN 60974-1 (40 °C)
85 A @60%
70 A @100%
U0
63V
cm/kg
15 x 23 x 10 / 2.9
IP
IP21
