Description
The CUTTER 45 CT is a 45 A plasma cutter equipped with the TPT 40 torch as standard, it offers a clean cutting capacity of 15 mm thick on a multitude of materials. The HF-free arcing system preserves and increases the lifetime of consumables. Designed to be used in difficult environments, it has a very robust mechanics and a user friendly control panel.
MAXIMUM PRODUCTIVITY
- Faster cutting speed than using oxygas
- Cuts all types of steel (mild, stainless, tempered, HLE), aluminium, copper, etc.
- Optimised cooling using the ventilation corridor that helps insulating the electronic components from the dust.
- Consumables setting up is easy for maximum productivity.
- Duty cycle 41 A at 60 % (40°C).
- Flexible Voltage Hose (85 to 265V), accepts very long network connections (100 m).
- PFC technology, the electrical network is betterexploited and allows an energy saving of 30%.

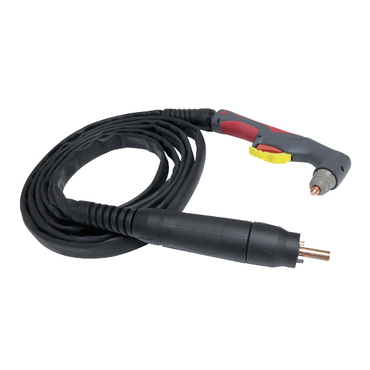

TORCH TPT 40 (4 m)
- Disconnectable torch for easy storage and replacement.
- Effective cutting: air cooled torch body for a high arc stability at the different paces.
- Easy to use trigger mechanism for more safety.
- Designed to be shock and heat resistant.
EFFECTIVE IN EVERY WORKPLACE
-

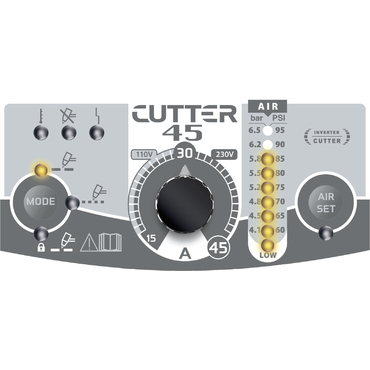

User friendly interface :
- 3 working modes : plain metal sheet / open metal sheet / locked
- manual setting of the air pressure using front screen chart. - HF-free ignition to prevent disturbances that could damage nearby electronic equipment.
- Compatible with CNC kit for automatic cutting tables.
- Disconnectable earth cable for easy storage and simple replacement.
DESIGNED TO LAST
- Reinforced metal case & non slip rubber pads.
- IP 23 certified for external use.
- Compact & portable.
ACCESSORIES & CONSUMABLES (options)

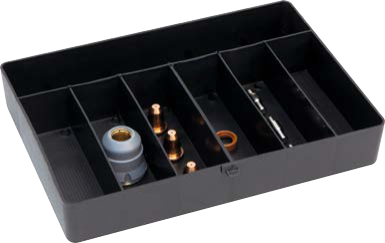

Consumables box for Torch TPT 40
45 A - 039957
Compass kit for Torch TPT 40
040205
Trolley for Torch TPT 40
040199
50/60hz
110 V 1~
230V 1~
32A
16A
I2
A
15 -> 30
15 -> 45
AIR SYSTEM
Pressure (bar)
L/min
5.5 -> 7
115
185
EN 60974-1 (40°C)
X (40°C)
21 A @ 60%
41 A @ 60%
cm/kg
48 x 37 x 23 / 14
POWER GENERATOR (+/- 15 %)
10.5 kW
