Description

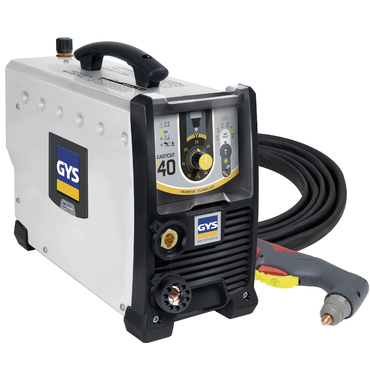

The ultra-compact EASYCUT 40 is an 8 kg plasma cutter featuring a non-HF starting voltage, making it perfect for cutting all types of metal up to 20 mm thick. With a power output of 40 A, it is fantastic at precision cutting using a low current. This appliance is deal for workshops or car bodywork repair shops thanks to its excellent portability and cutting performance.
EFFICIENT
- Its inverter technology guarantees quality cutting on all types of steels (soft, stainless, hardened and high-tensile), aluminium and copper, etc.
- Quick and easy installation of consumables.

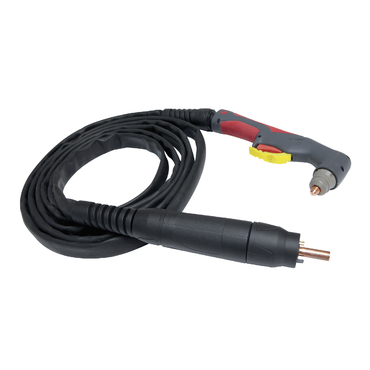

ERGONOMIC TORCH
- Effective cutting: an air cooled torch body provides greater arc stability and a high duty cycle.
- Equipped with an ergonomic handle for comfort and ease.
- Designed to be shock and heat resistant.
- Connect and disconnect the torch quickly and without using any tools.
SIMPLE TO USE

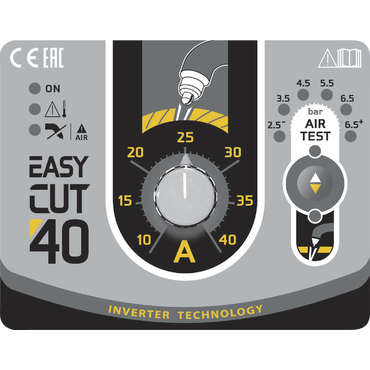

- Intuitive control panel.
- Manual adjustment of the air pressure (2.5 < 6.5 bar) with a bargraph on the front panel.
- Automatic torch detection.
- Non-HF ignition prevents disturbances that could damage nearby electronic equipment.
SAFE
- Protected against overvoltage and overcurrent
- Indicates when air pressure is insufficient or when a torch is detected
USER FRIENDLY
- Reinforced structure with electrically insulted, non-slip, rubber pads.
- HMI protective cover.
- The torch and earth clamp can be disconnected.
- Compact, lightweight and portable.
ACCESSORIES & CONSUMABLES
Consumables box TPT40
039957
Compass kit
040205
PLASMA 600 trolley
040298
Impurities / Dirt filter
039728
50/60hz
230V 1~
16A
I2
A
10 -> 40
AIR SYSTEM
Pressure (bar)
L/min
2.5 -> 6.5
115
EN 60974-1 (40°C)
X (40°C)
10 A @60%
40 A @20%
cm/kg
42 x 15 x 30 / 8
IP
IP21
