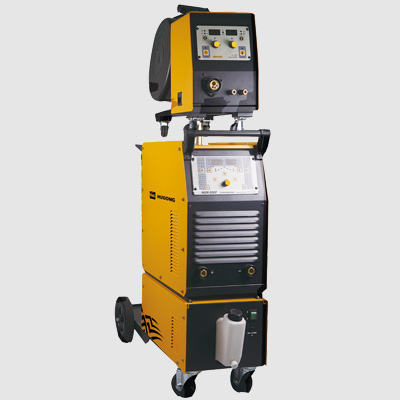

![mommentum djaja - hugong - INVERMATRIX PULSE MIG/MAG[GMAW]](https://mommentumdjaja.co.id/wp-content/uploads/2023/12/2018040314550711.jpg)
Description
- Industrial on trolley Multi-Process inverter welder
- Advanced IGBT inverter technology
- Multiple Processes with MIG/STICK/Liftarc TIG/pulse MIG
- Thermal protection, over/lack voltage protection
- Easy Set-up & adjustment panel,Stepless voltage, wire feeder setting, Digital display
- Spot timer,2T/4T,gas check,Gas pre-flow, Gas post-flow,Burn back
- Data memory function
- Four roller wire feeding system
- High duty cycle and welding capacity
- Ready to connect with robot
- Handles a wide range of wire and electrode for a variety of welding materials
Technical parameter
| Model | INVERMATRIX 350 | INVERMATRIX 500A | INVERMATRIX 500F |
| Input Power (V) | 380 | 380 | 380 |
| Rated Input Current (A) | 30 | 38 | 38 |
| Rated Input Capacity (kVA) | 16.8 | 32.5 | 32.5 |
| Rated Open Circuit Voltage(V) | 78 | 76 | 76 |
| Welding Current Adjustment Range(A) | MIG30-350/MMA10-350 | MIG30-500/MMA10-500 | MIG30-500/MMA10-500 |
| Rated Output(A) (40℃) | 100%/60%@350 | 100%/60%@500 | 100%/60%@500 |
| Weight(kg) | 150 | 150 | 150 |
| Wire Diameter (mm) | 0.8-1.2 | 0.8-1.6 | 0.8-1.6 |
| LxWxH (mm) | 1095x525x1120 | 1095x525x1120 | 1095x525x1120 |
