Description

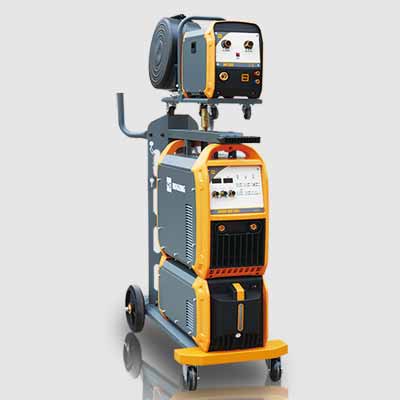

- On trolley, Water Cooled Multi-Process Inverter Welder
- New Generation advanced IGBT Inverter Technology
- Industrial type, compact with heavy duty ;easy to move.
- Portable 4 Roll wire feeder unit.
- Multiple Process with MIG ( GMAW) and MMA ( SMAW) .
- Manual and Synergetic controls .
- Ideal for welding of carbon steels, low-alloy steels, stainless steels
- Digital welding current and voltage display.
- Equipped with voltage protection and thermal protection
- Excellent welding with steel, stainless steel, aluminium and flux cored wires
- Power, Overload and Under/Over-Voltage LED indicators.
- Welding mode;Manual /Synergetic, wire diameter, 2T/4T and shielding gas selections /settings.
- Adjustable ending current / voltage and inductance.
- Adjustable; Hot start, Arc Force for MMA welding.
- Stepless wire feeding speed ,voltage and spot welding timer adjustment knob
- Built-in soft wire feeding, pre /post-gas, burn-back and ball cutting.
- Patented design
- IP21S Protection Class.
- Weight is 91 Kg.
- Dimensions (cm) (L×W×H) 110× 47× 158
Technical parameter
| Model | INVERMIG 500III |
| Input Power (V) | 400 |
| Rated Input Current (A) | 41.8 |
| Rated Input Capacity (kVA) | 27.5 |
| Rated Open Circuit Voltage(V) | 73 |
| Welding Current Adjustment Range(A) | 40-500 |
| Rated Output(A) (40℃) | 80%60%@500 |
| Weight(kg) | 91 |
| LxWxH (mm) | 1100x470x1580 |
Parts
ACCESSORIES
OPTIONAL
