Description

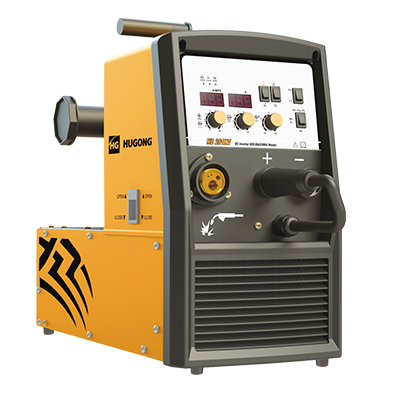

- Portable Multi-Process Inverter Welder
- New Generation advanced IGBT Inverter Technology
- Multiple Process with MIG ( GMAW), MMA ( SMAW)
- Ideal for welding of carbon steels, low-alloy steels, stainless steels
- Excellent welding with steel, stainless steel, aluminium and flux cored wires
- Digital welding current and voltage display.
- Equipped with voltage protection and thermal protection
- Power, Overload LED indicator
- Stepless wire feeding speed ,voltage and spot welding timer adjustment knob
- Built-in anti-sticking
- Easy welding cable connections with European type quick connectors.
- Fan cooling system
- IP21S Protection Class
- Lightweight, Small ,Compact and patented design
- Weight is only 23.2Kg.
- Dimensions (cm.) (L×W×H) 51x24.3x49.2
Technical parameter
| Model | NB 201KV | NB 251KV |
| Input Power (V) | 230 | 230 |
| Rated Input Current (A) | 35.8 | 48.8 |
| Rated Input Capacity (kVA) | 7.9 | 11.2 |
| Rated Open Circuit Voltage(V) | 56 | 56 |
| Welding Current Adjustment Range(A) | 30-200 | 30-250 |
| Rated Output(A) (40℃) | 60%/35%@200 | 60%/35%@250 |
| Weight(kg) | 23.5 | 23.5 |
| LxWxH (mm) | 550x260x490 | 550x260x490 |

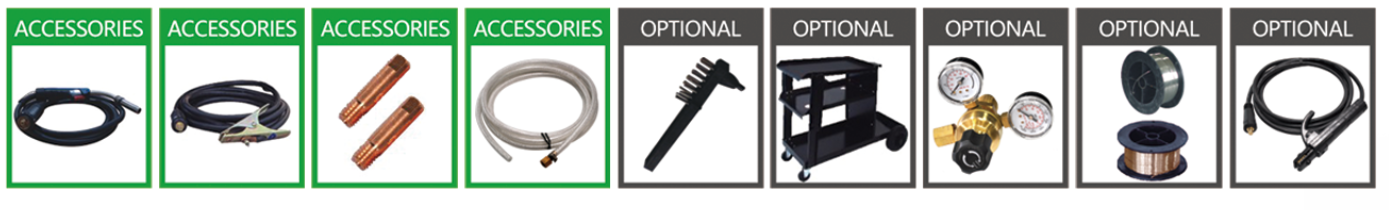

Parts
