Welding Machine

MIG/MAG Welders (GMAW)

SUPERMATRIX 500III MIG/MAG(GMAW)

mommentum djaja - hugong - SUPERMATRIX 500III MIG/MAG(GMAW)

Description

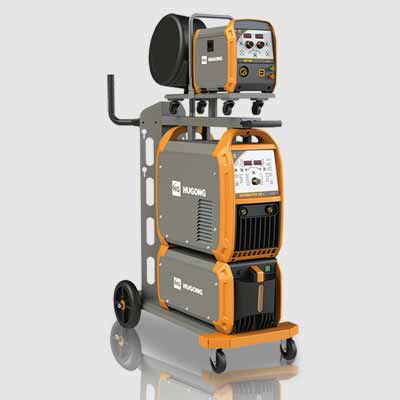

  • On trolley, Water Cooled Multi-Process Synergic Inverter Welder
  • New Generation advanced IGBT Inverter Technology
  • Industrial type, compact with heavy duty ;easy to move.
  • Portable 4 Roll wire feeder unit.
  • Multiple Process with MIG ( GMAW) and MMA ( SMAW) .
  • Ideal for welding of carbon steels, low-alloy steels, stainless steels
  • Manual and Synergetic controls .
  • Welding mode, Welding Materials, Shielding Gas, Wire Diameters selections/settings.
  • Welding parameters storage and recall.
  • Digital welding current and voltage display.
  • Excellent welding with steel, stainless steel, aluminium and flux cored wires
  • Power, Overload and Under/Over-Voltage LED indicators.
  • Equipped with voltage protection and thermal protection
  • Adjustable ending current / voltage and inductance.
  • Adjustable; Hot start, Arc Force for MMA welding.
  • Stepless wire feeding speed ,voltage and spot welding timer adjustment knob
  • Built-in soft wire feeding, pre /post-gas, burn-back and ball cutting.
  • IP21S Protection Class.
  • eight is 112 Kg.
  • Dimensions (cm.) (L×W×H) 113.3× 49.8 × 150.8
mommentum djaja - hugong - SUPERMATRIX 500III MIG/MAG(GMAW)
mommentum djaja - hugong - SUPERMATRIX 500III MIG/MAG(GMAW)

Technical parameter

Model SUPERMATRIX 500III
Input Power (V) 400
Rated Input Current (A) 38
Rated Input Capacity (kVA) 27.5
Rated Open Circuit Voltage(V) 80
Welding Current Adjustment Range(A) MIG30-500/MMA10-500
Rated Output(A) (40℃) 60%40%@500
Weight(kg) 112
LxWxH (mm) 1133x498x1508
