Description

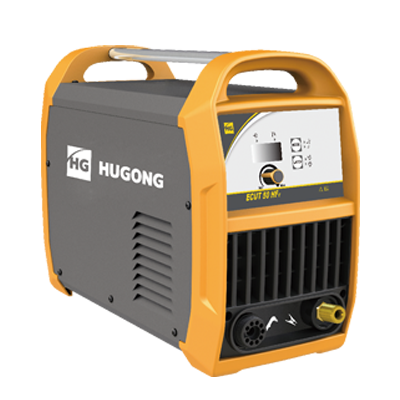

- Portable Plasma Cutter
- New Generation IGBT Inverter Technology
- High performance on cutting of low alloyed steels, stainless steels and aluminium alloys.
- Equipped with voltage protection and thermal protection

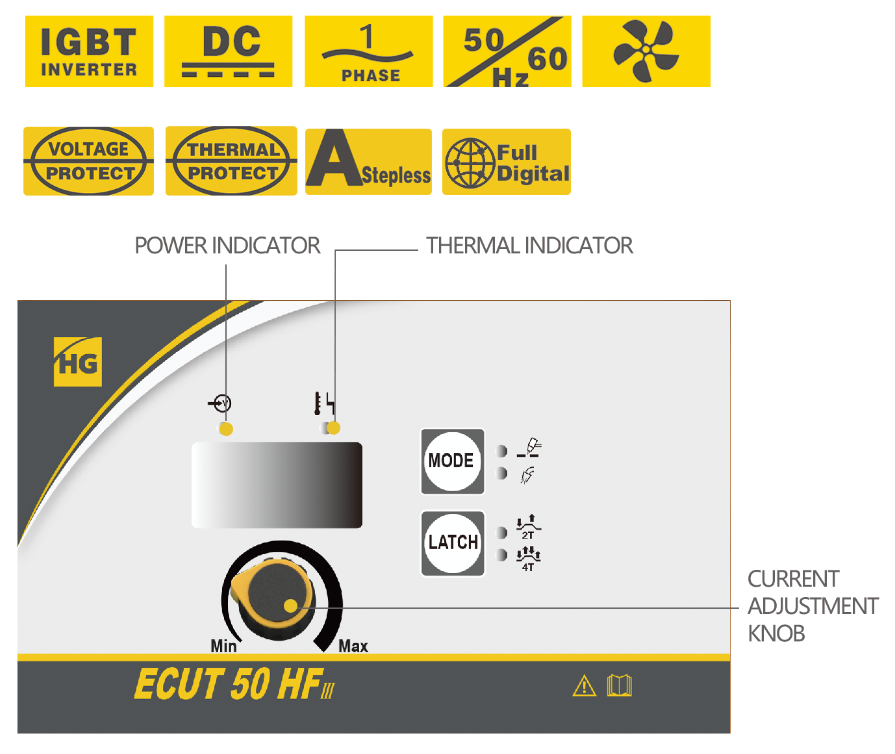

- Easy-to-use and user-friendly control panel
- Equipped with air pressure meter & air valve
- 2T/4T
- Power and overload indicators
- Steeples cutting current knob
- Fan cooling system
- IP21S Protection Class.
- Lightweight, Small and Compact Design
- Weight is only 11 Kg.
- Dimensions (mm.) (L×W×H) 459 × 200 × 338
Technical parameter
| Model | ECUT 50HFIII |
| Input Power (V) | 230 |
| Rated Input Current (A) | 24 |
| Rated Input Capacity (kVA) | 6.4 |
| Rated Open Circuit Voltage(V) | 320 |
| Welding Current Adjustment Range(A) | 20-50 |
| Rated Output(A) (40℃) | 40%@50 |
| Recommended Cutting Thickness(mm) | 12 |
| Max Cutting Thickness(mm) | 20 |
| Weight(kg) | 11 |
| LxWxH (mm) | 459 x 200 x 338 |

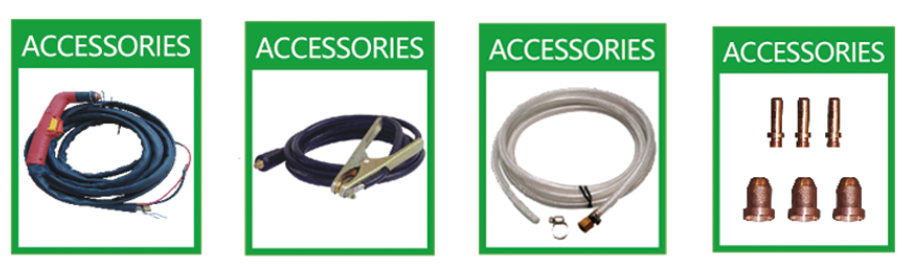

Parts
