Description

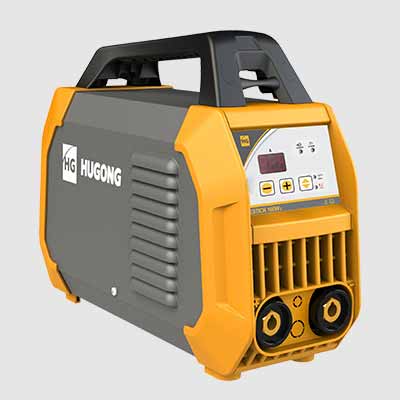

  • Portable Stick Welder
  • New Generation IGBT Inverter Technology
  • Built-in Anti-Sticking and Hot Start
  • Ideal for welding of carbon steels, low-alloy steels and stainless steels
  • Excellent arc characteristics and performance with electrodes in diameters of 1.6 to 5.0 mm. Rutile (E 6013) and Basic (E 7018) type electrodes
  • Thermal protection and power indicator light
  • Equipped with voltage protection this improves the reliability

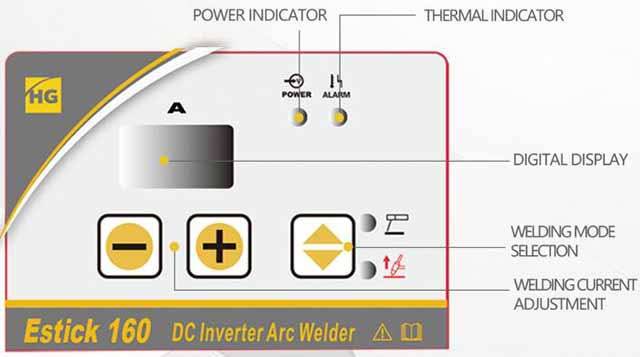

  • Easy-to-use and user-friendly control panel
  • Steeples welding current knob
  • Easy welding cable connections with European type quick connectors
  • Fan cooling system
  • IP21S Protection Class
  • Lightweight, Small and Patented Compact Design
  • Weight is only 5.5 Kg
  • Dimensions (cm.) (L×W×H) 40 × 15.4× 30
mommentum djaja - hugong - ESTICK SERIES STICK[SMAW]
mommentum djaja - hugong - ESTICK SERIES STICK[SMAW]

Technical parameter

Model ESTICK 160 III ESTICK 200 III
Input Power (V) 230 230
Max Input Current(A) 31 41
Rated Input Capacity(kVA)) 6.8 9.0
Rated Open Circuit Voltage(V) 78 78
Welding Current Adjustment Range(A) 20-160 20-200
Rated Output(A)(20℃) / (40℃) 50%25%@160 40%15%@200
Weight(kg) 5.5 5.5
Electrode Diameter (mm) 1.6-4.0 1.6-5.0
LxWxH (mm) 400 x 154 x 300 400 x 154 x 300

Parts

ACCESSORIES
