Welding Machine

Stick Welders (SMAW)

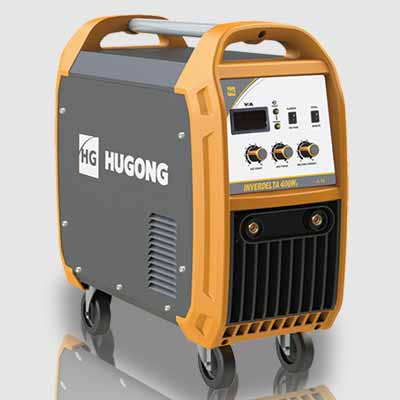

INVERDELTA 400WIII/500WIII STICK[SMAW]

mommentum djaja - hugong - INVERDELTA 400WIII/500WIII STICK[SMAW]

Description

  • On- Wheels Industrial Type Stick Welder
  • New Generation IGBT Inverter Technology
  • High Duty Cycle and welding capacity
  • Ideal for welding of carbon steels, low-alloy steels and stainless steels
  • Excellent welding performance with Rutile ( E 6013), Basic ( E 7018) as well as Cellulosic Type Electrodes ( E 6010) in diameters of 1.6mm to 5 mm
  • Adjustable Hot Start and Arc Force

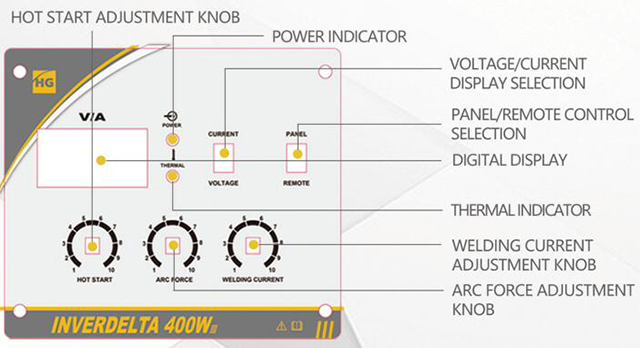

  • Easy-to-use and user-friendly control panel
  • Stepless welding current adjustment knob
  • Hot start and arc force adjustment knobs
  • Digital ampermeter / voltmeter
  • Equipped with thermal protection and it’s indicator light
  • Power Indicator light
  • Equipped with voltage protection this improves the reliability
  • Easy welding cable connections with European type quick connectors
  • Remote control can be used.
  • Fan cooling system
  • IP21S Protection Class
  • Weight is only 45 Kg
  • Dimensions (cm.) (L×W×H) 65.4 × 32.2 × 67.1
mommentum djaja - hugong - INVERDELTA 400WIII/500WIII STICK[SMAW]
mommentum djaja - hugong - INVERDELTA 400WIII/500WIII STICK[SMAW]

Technical parameter

Model INVERDELTA 400WIII INVERDELTA 500WIII
Input Power (V) 400 400
Max Input Current(A) 26 40
Rated Input Capacity(kVA)) 18 27.7
Rated Open Circuit Voltage(V) 76 80
Welding Current Adjustment Range(A) 25-400 25-500
Rated Output(A)(20℃) / (40℃) 60%25%@500
Weight(kg) 45 49
LxWxH (mm) 654x 322 x 671 654x 322 x 671

Parts

ACCESSORIES

mommentum djaja - hugong - EXTREME STICK[SMAW]
mommentum djaja - hugong - EXTREME STICK[SMAW]

OPTIONAL

mommentum djaja - hugong - EXTREME STICK[SMAW]
mommentum djaja - hugong - EXTREME STICK[SMAW]
mommentum djaja - hugong - EXTREME STICK[SMAW]
