Description

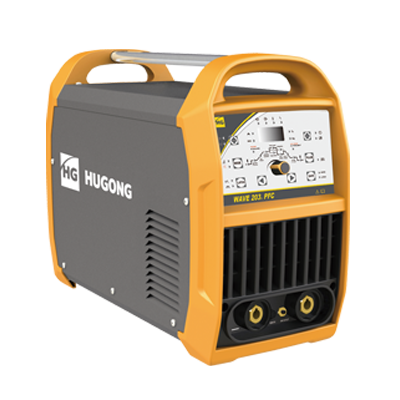

- Portable Inverter AC/DC Pulse TIG / MMA Welder
- New Generation IGBT Inverter Technology
- PFC；Power factor correction techonology
- Ideal for welding of carbon steels, low-alloy steels, stainless steels, aluminium / aluminium alloys and copper
- Digital and full functional display
- Digital ampermeter / voltmeter
- Built-in Anti-Sticking
- Equipped with voltage protection and thermal protection

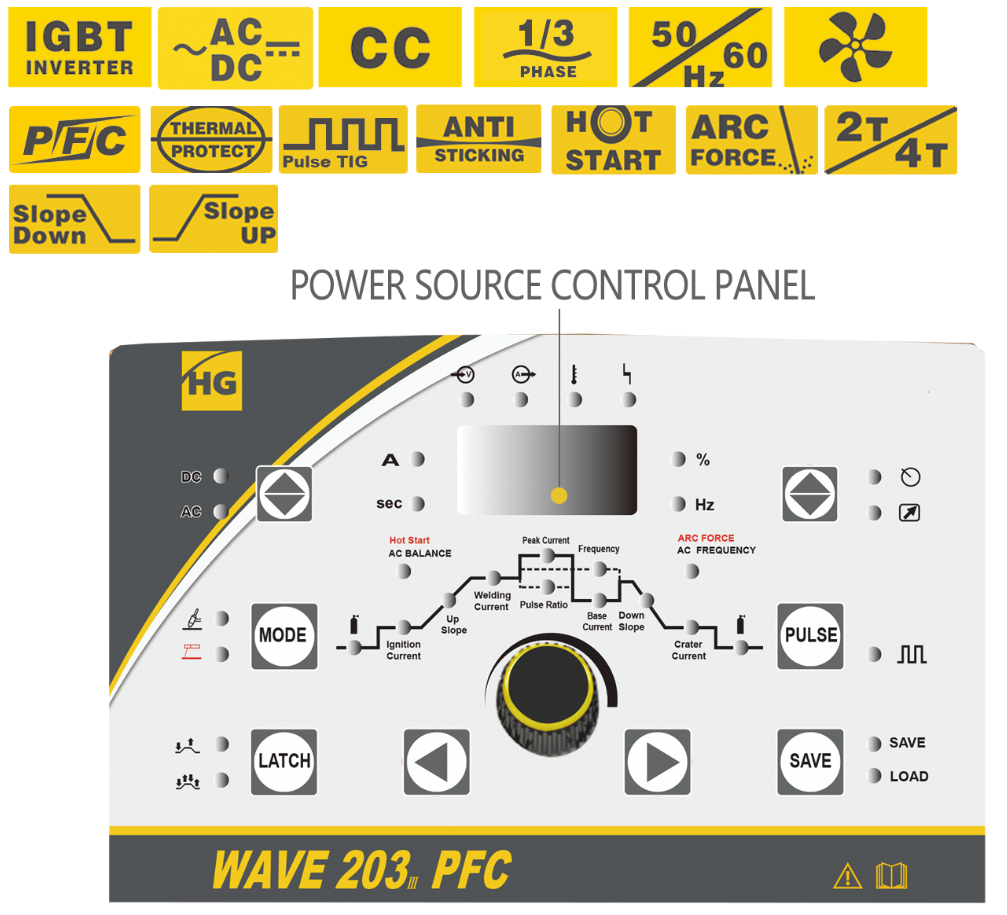

- Easy-to-use and user-friendly control panel
- Welding Mode, AC/DC, Pulse, 2T/4T and save-load setting selections/ settings buttons.
- Adjustable & displayable gas pre-flow/post flow, AC frequency/balance, ignition/ base/peak current; simply welding procedure parameters.
- Adjustable; Hot start, Arc Force for MMA welding.
- Steeples Welding Current/Setting Knob
- Power, Overload and Under/Over-Voltage LED indicators
- Easy welding cable connections with European type quick connectors
- Foot pedal control can be used
- Fan cooling system
- IP21S Protection Class
- Lightweight, Small and Patented Compact Design
- Weight is only 16.5 Kg.
- Dimensions (cm.) (L×W×H) 52× 24.2× 43
![mommentum djaja - hugong - WAVE 203III PFC TIG[GTAW]](https://mommentumdjaja.co.id/wp-content/uploads/2023/12/WAVE-203III-PFC1-1.png)
Technical parameter
| Model | WAVE 203III | |
| Input Power (V) | 120V±15% | 230V±15% |
| Rated Input Current (A) | 21 | 22 |
| Rated Input Capacity (kVA) | 2.31 | 4.84 |
| Rated Open Circuit Voltage(V) | 83 | 83 |
| Welding Current Adjustment Range(A) | TIG10-200/AC TIG10-200/MMA10-200 | TIG10-120/AC TIG10-120/MMA10-120 |
| Rated Output(A) (40℃) | 35%20%@200 | 35%35%@200 |
| Weight(kg) | 16.5 | 16.5 |
| LxWxH (mm) | 520x242x430 | 520x242x430 |
