Description

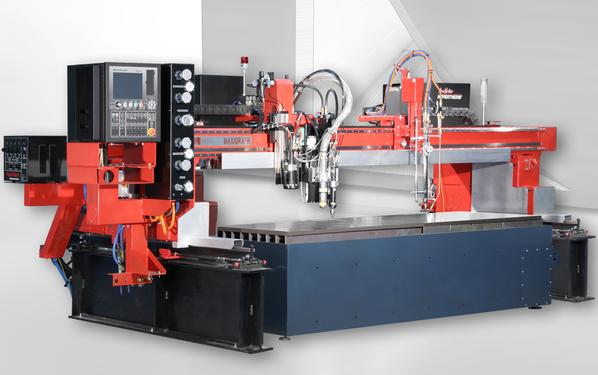

The body has a gantry structure and dual side drive systems. Work proceeds smoothly at all times since the body is well balanced and very responsive. A rack and pinion backlash free drive is used for both the cross (X-axis) and longitudinal (Y-axis) directions, which achieves accurate and repeatable motion. Highly accurate, smooth operation is assured thanks to precision machined steel rails and a stable longitudinal drive mechanism. Up to five additional oxy-fuel tool carriages can be attached to a steel band which is not susceptible to slag deposits. The specialized rapid-action coupling allows for efficient manual positioning of the tool carriages and multi-torch cutting.
Features
- Proven in high demanding production environments
- Easy to use, very low maintenance and long lifetime of the solid and rugged machine
- Wide range of cutting thicknesses performed with oxy-fuel and plasma cutting tools
- High speed and high precision plasma up to 400 amps available for nearly all cutting requirements
- Simplified operation via touchpanel control with proven Burny Phantom CNC
- Various marking devices for almost any marki
Technical specifications
| Maxigraph | |
| Machine structure | Gantry style, dual side drive |
| Control panel | Left-hand use (Right-hand optional) |
| Drive system | Backlash free AC-drives |
| Effective cutting width | 2.600 / 3.100 / 3.600 / 4.100 mm |
| Effective cutting length | Rail length -1.750 mm |
| Rail | increments of 3.000 mm |
| Torch support | Steel band quick clamping device |
| Max. cutting speed | 6.000 mm/min |
| Marking speed | 9.000 mm/min |
| Rapid traverse speed | 15.000 mm/min |
| CNC unit | Burny Phantom |
| Number of tools | 6 torches (2 plasma max.) |
| Minimum torch distance | 125 mm |
| Pre-heat gas control | Hi-Low pre-heat gas control system |
| Power supply voltage | 230 V - 50 Hz / 60 Hz |
| Available plasma power sources | KOIKE Super 400 Plus Hypertherm HSD & HPR-Series |
