Description

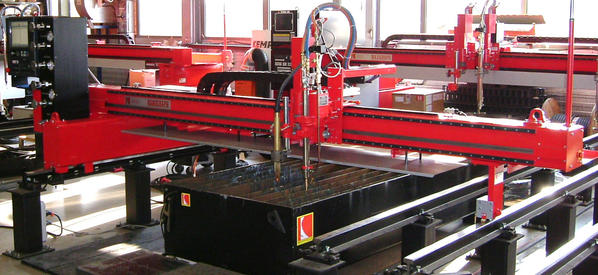

The frame is a single side drive gantry structure. As the frame is well balanced, highly responsive motion control is possible, producing smooth, accurate cutting all the time. Highly accurate, smooth operation is assured thanks to precisely machined rails and a stable drive carriage. Rail length can be extended in 3-meter increments. Rapid traverse and marking speed is 12 meters per minutes, and the maximum cutting speed is 6 meters per minute.
Features
- High performance and efficiency to meet a wide range of requirements
- Various models available
- Extendable cutting length
Technical specifications
| Nanograph | |
| Type | 2500 / 3000 / 3500 |
| Main Body | Gantry Type / Single-side drive |
| Drive method | Rack and pinion drive for X and Y axes |
| Effectice cutting width | 1600 mm / 2100 mm / 2600 mm |
| Torch mounting system | Steel belt connection system |
| Cutting speed | 6000 mm / min |
| Torch quantity | Max. 4 torches |
| Minimum torch distance | 125 mm |
| Oxy-fuel cutting capacity | 6 ˜ 100 mm (max. 50 mm by 4 torches) |
| Power supply voltage | Single phase 100V/110V |
