Description

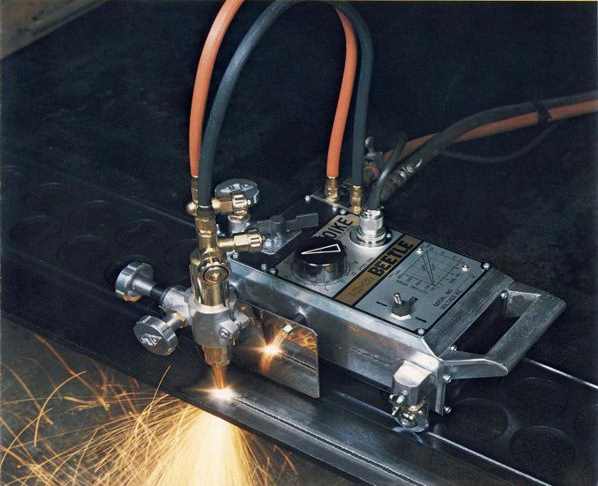

The IK-12 Beetle is a high quality motorized hand cutting machine. The operator can perform all types of cutting with ease (circle and bevel cutting). The drive system (continuous mechanical feed change) guarantees a constant and stable movement of the machine. The travel functions (forwards, backwards, stop) are activated only by one operation element. The clutch control assures an trouble-free positioning of the machine. Bevel cutting is achieved by simply adjusting the torch holder at the bottom edge of the plate. A gear rack/ bevel drive ensures an precise positioning of the machine torch (Y- and Z-axis).

Features

Scope of delivery

Technical specifications

IK-12 Beetle
Cutting thickness 5-50 mm (by standard accessories)
Cutting speed 150-800 mm / min
Transmission System Single cone system
Total length 360 mm
Track width 160 mm
Type of gas Acetylene, Propane
Weight 9.5 kg (Single Torch Set included)
