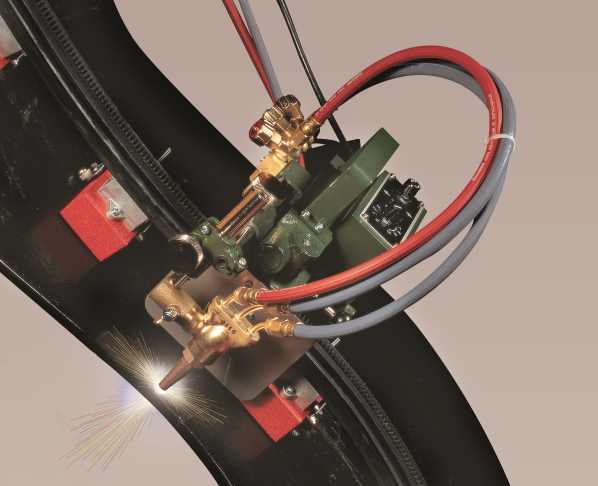

The IK-72T is a portable automatic cutting machine for all positions (Three dimensional). There are three different types of rails. The 1 D rail made of aluminum allows cutting of even surfaces. The cutting system 2 D/ 3 D made of hard rubber with flexible steel pipes in the inside allows cuts in the second and third dimension. All rails are delivered with magnetic holder enabling cuts in vertical and horizontal position. The low weight (4,5 kg) and the outstanding rigid mechanics (gear rack/ bevel drive and lateral guide rolls) assure high quality cutting accuracy.
IK-72T | ||
Cutting thickness | 5-30 mm | |
Cutting speed | 150-700 mm/min | |
Drive method | Rack and pinion | |
Bevel Cutting Angle | 0-45° | |
Machine Dimention | L200×W400×H250 mm | |
Type of gas | Acetylene, propane | |
Weight | 4.5 kg | |
Selectable Rails | 1D rail | 1500mm extendable alumi. |
2D rail | 1000mm extendable rubber (Minimum radius : 2500mm) | |
3D rail | 1000mm extendable rubber (Minimum radius : 2000mm) | |
*1D Rail for accurate straight cutting. | ||
* 2D rail for straight cutting and curved plane cutting. | ||
* 3D rail for straight cutting and twisted plane cutting. |
