Description

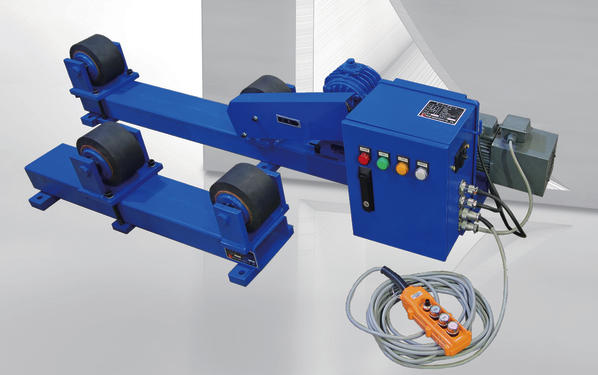

The KOIKE Turning Roll TR Model Series is a line-up of models that support loads from 1-50t. For roller interval adjustment, TR-1BR is set to any position on the frame and fixed in place, TR-3BR is fixed in place with a knock-pin and for TR-5R and above, a screw structure is used. Besides the standard nitrile rubber, roller materials are available in urethane, which helps prevent damage to installed work and steel, which is resistant to friction.
Technical specifications
| Model TR-R turning roll main body specifications | |||||||
| Model | TR-1BR | TR-3BR | TR-5R | TR-10R | TR-20R | TR-30R | TR-50R |
| Equipping load (kg) | 1000 | 3000 | 5000 | 10000 | 20000 | 30000 | 50000 |
| Equipped diameter (mm) | 50-1500 | 200-2000 | 300-3500 | 300-3500 | 400-5000 | 400-5000 | 500-6000 |
| Roller peripheral speed (mm/min) | 70-700 | 139-1390 | 134-1340 | 139-1390 | 148-1480 | 148-1480 | 147-1470 |
| Roller interval (mm) | 160-700 | 210-900 | 420-1600 | 420-1600 | 420-2200 | 470-2200 | 500-2800 |
| Roller size Diameter x Width (mm) | 150×100 | 200×120 | 300×120 | 300×140 | 300×160 | 300×180 | 420×240 |
| Drive | 1 wheel | 1 wheel | 2 wheel | 2 wheel | 2 wheel | 2 wheel | 2 wheel |
| Main body weight (kg) | 200 | 260 | 900 | 930 | 1400 | 1500 | 3250 |
| Input power source | Three Phase 200V 50/60Hz | ||||||
