Description

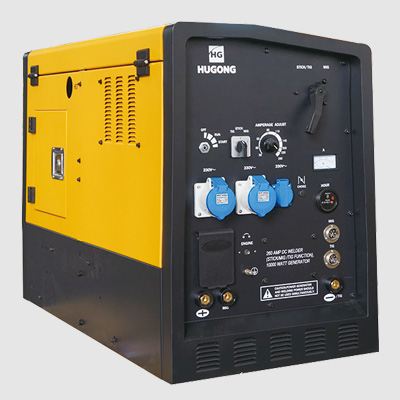

- Compact DC generator welder,
- Multi-process MIG/Stick/TIG for welding
- New model with hatchback design, convenient maintenance
- Powerful and reliable engine
- Exceptional DC Stick welding performance
- Ideal equipment for outdoor and field use
- Optional MIG wire feeder, voltage arc feedback wire feeder, trailer
Technical parameter
| Model | ROCK 260 (D) |
| Function | CC/PIPE |
| Technology | DC/CC |
| Output Power (V) | 120/240V 50/60Hz |
| Phase | 1 |
| Output Power (W) | 8500 |
| Max Power (W) | 9000 |
| Rated input Current(A) | 70.8/35.4 |
| Fuel Tank (L) | 38 |
| Start Type | Electric |
| Rated Amperage(A) | 260 |
| Open Circuit Voltage (V) | 75 |
| Welding Current (A) | 60-260 |
| Duty Cycle (% at A) | 50% |
| Electrode/ Wire Dia (mm) | 2.0-5.0 |
| Machine Size (mm) | 1180x628x700 |
| Package Size (mm) | 1220x700x725 |
| NET Weight (kg) | 240 |
| Gross Weight (kg) | 253 |
