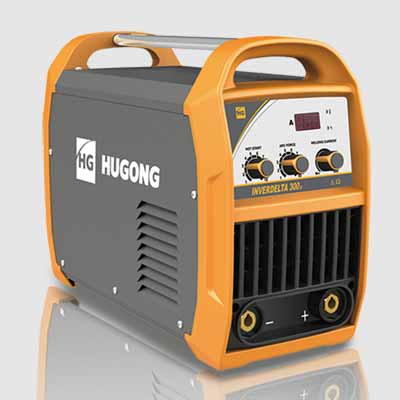

INVERDELTA 300III/400III STICK[SMAW]

Welding Machine

Stick Welders (SMAW)

Portable Stick Welder
New Generation IGBT Inverter Technology
Ideal for welding of carbon steels, low-alloy steels and stainless steels
Excellent welding performance with Rutile ( E 6013), Basic ( E 7018) as well as Cellulosic Type Electrodes ( E 6010) in diameters of 1.6mm to 5 mm
High Duty Cycle and welding capacity

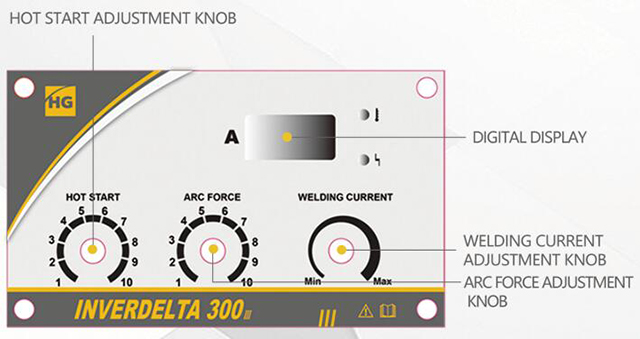

Easy-to-use and user-friendly control panel
Stepless welding current adjustment knob
Hot start and arc force adjustment knobs
Digital ampermeter / voltmeter
Equipped with thermal protection and it’s indicator light
Equipped with voltage protection this improves the reliability
Power Indicator light
Easy welding cable connections with European type quick connectors
Fan cooling system
IP21S Protection Class
Weight is only 19 Kg
Dimensions (cm.) (L×W×H) 51 × 24 × 42

Model	INVERDELTA 300III	INVERDELTA 400III	INVERDELTA 400III
Input Power (V)	220	220	400
Max Input Current(A)	34	50	29
Rated Input Capacity(kVA))	13	19	19
Rated Open Circuit Voltage(V)	82	82	82
Welding Current Adjustment Range(A)	15-300	15-400	15-400
Rated Output(A)(20℃) / (40℃)	60%25%@300	60%25%@400	60%25%@400
Weight(kg)	19	19	19
LxWxH (mm)	510 x 240 x 420	510 x 240 x 420	510 x 240 x 420
