Description
A performance boost for your Powermax1100 plasma system
Whether your Powermax1100® is part of a manual or a mechanized system, retrofitting it with the RT80 torch will give you improved cutting performance, dramatically longer consumable life, and enhanced productivity. A plug-and-play replacement for the system’s original PAC135, this capable 80-amp torch is based on the proven design of the Hypertherm T80 torch for the Powermax1250 G3 Series.
- 50% faster cutting speeds than standard HT2000
- SilverPlus® electrodes improve consumable life by at least 75% over HT2000 standard copper
- Timesaving quick-disconnect torch design with easy alignment feature
It incorporates a number of significant performance enhancements, including:
- Coaxial-assist™ jet technology for improved contact-starting and up to 10 times longer parts life
- 173% longer consumable life through unique torch dynamics and HyLife® electrode technology
- Cut speeds up to 48% faster – 19 ipm on 1” steel (480 mm/m on 25 mm steel)
- Consistent cut quality assured by patented blow-back contact-start torch technology
- New narrow-profile nozzle shield that allows drag-cutting convenience
- Chemically cross-linked cable jacket that’s twice as cut resistant and four times more burn resistant than competitive cables
RT80 torch assemblies
- 087033 RT80 Hand Torch Assembly, 25 ft (7.5 m) Leads
- 087035 RT80M Machine Torch Assembly, 25 ft (7.5 m) Leads
Visit our where to buy page to find a potential partner, or contact Hypertherm directly if you need further assistance.
Powermax1100 RT80/RT80M Retrofit Torch Operator Manual
Last updated
12/07/2010
PDF
(1.88MB)
Torches and consumables
Hand torch consumables
Hand torch consumables

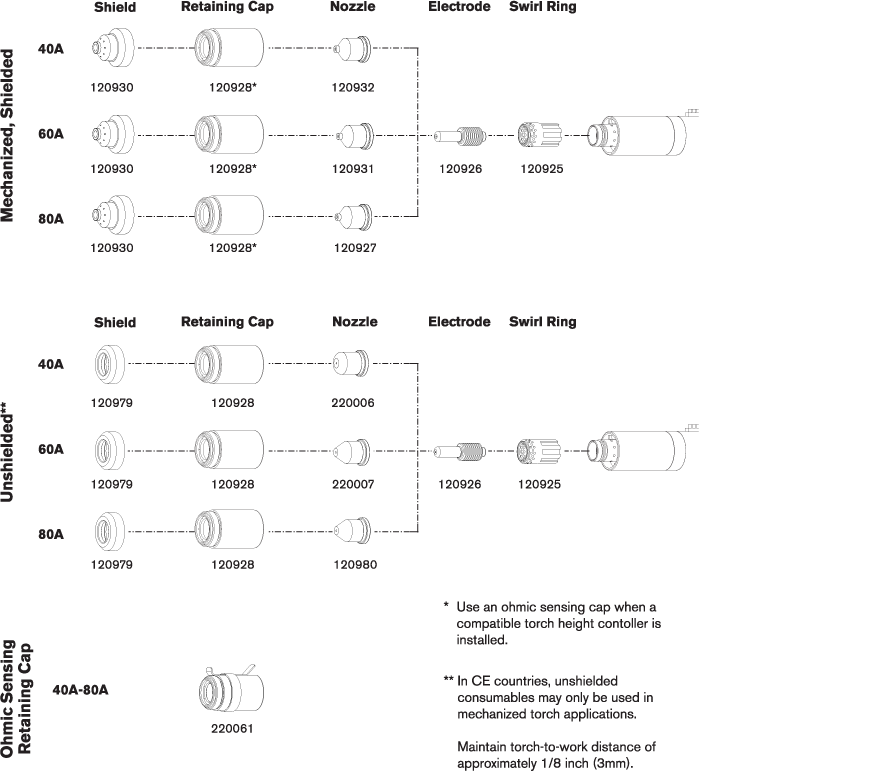

Mechanized torch consumables
