Description

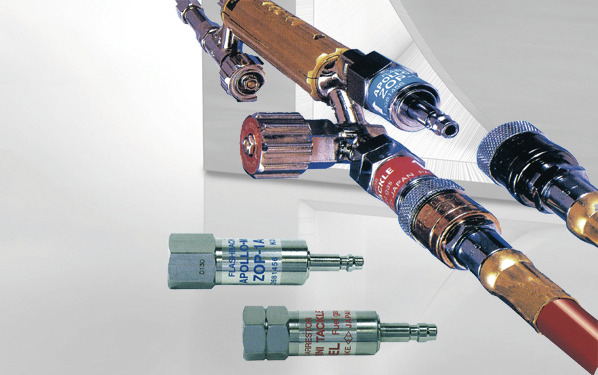

Powerful, Compact Unit Reduces Risk of Flashback The Koike Apollo series Flashback Arrestor is engineered to add safety and convenience to cutting and Welding. Practically to be coupled regulator to hose, hose to hose, equipment to hose and machine torch . The Koike Apollo series Flashback arrestor are renowned for safety, quality and longevity. The combination coupler and flashback arrestor is one of the smallest on the market fitting most torches without the need for adapters. Each coupler is designed for heavy duty use in industries such as Ship Building, Steel Service Centers, Construction, Metal Fabrication, Schools and Demolition.
Features
-
Coupler and Flashback Arrestor
The unique combination of flashback arrestor and coupler protects the end user from Flashbacks and allows quick assembly and removal of the torch from gas hoses -
Excellent Reverse – Flow Prevention
High quality reverse - flow valve helps to prevent the possibility of gases mixing, when a backfire occurs it shuts off pressure to the torch -
Chrome Plated Finish
Durable chrome plating provides corrosion resistance and ensures smooth coupling -
Tight Sealing
Two unique seal pickings provided between plug and socket assures tight sealing - U/L Listed
Lists
| For Regulator to Hose without Backflow-preventive valve | GA-1S | GA-2S | GA-1SS | GA-2SS |
| UL Certificate File No. | MH17441 | |||
| Socket | Without Socket | With Socket | ||
| Gas | Oxygen | Fuel gas | Oxygen | Fuel gas |
| Operation Pres. range | 0.1～0.9MPa | 0.01～0.13MPa | 0.1～0.9MPa | 0.01～0.13MPa |
| Max. Flow rate | 25,000NL/H | 3,000NL/H | 25,000NL/H | 3,000NL/H |
| Connection | Various connection type will be available. | |||
| For details, Please ask to us. | ||||
| Length | 60.5mm | 81.0mm | 83.0mm | |
| Weight | 122g | 157g | 160g | |
| Side view |
 |
 |
 |
 |
| For Regulator to Hose with Backflow-preventive valve | GA-1 | GA-1MK | GA-2 | GA-2MK |
| UL Certificate File No. | MH16462 | MH17441 | MH16462 | MH17441 |
| Temperature activated cut-off valve | Without Valve | With Valve | Without Valve | With Valve |
| Gas | Oxygen | Fuel Gas : Acetylene, LPG, LNG | ||
| Operation Pres. range | 0.1～0.9MPa | 0.01～0.13MPa | ||
| Max. Flow rate | 25,000NL/H | 3,000NL/H | ||
| Connection | Various connection type will be available. | |||
| For details, Please ask to us. | ||||
| Length | 72mm | 72mm | ||
| Weight | 210g | 210g | ||
| Side view |
 |
 |
 |
 |
| For Equipment to Hose | ZOP-1AE | ZOP-1AEL | ZOP-2AE | ZOP-2AEL |
| UL Certificate File No. | MH17441 | |||
| Gas | Oxygen | Fuel Gas : Acetylene, LPG, LNG | ||
| Operation Pres. range | 0.2～0.9ＭＰａ | 0.02～0.08ＭＰａ | ||
| Max. Flow rate | 10.000Ｎℓ/ｈ | 20.000Ｎℓ/ｈ | 1.500Ｎℓ/h | 2.500Ｎℓ/h |
| Length | 53mm | 62mm | 55mm | 68mm |
| Weight | 48g | 71g | 49g | 72g |
| Side view |
 |
 |
 |
 |
| For Machine torch | GAM-1S | GAM-1SL | GAM‐2S | GAM-2L |
| Gas | Jet Oxygen | Oxygen | Acetylene, LPG | |
| Operation Pres. range | 0.1～0.99MPa | 0.01～0.1MPa | ||
| Max. Flow rate | 25,000NL/H | 35,000NL/H | 3,000NL/H | 3,000NL/H |
| Connection | Various connection type will be available. | |||
| For details, Please ask to us. | ||||
| Length | 58mm | 79mm | 58mm | 96mm |
| Weight | 110g | 140g | 110g | 220g |
Model name -1:for Oxygen, -2:for Fuel Gas
Features
| No. | ||

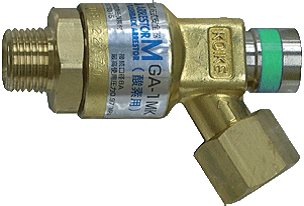

| 1. | GA-1MK/GA-2MK | Flashback arrestor with Cut-off valve for Regulator to Hose |
| 2. | GS-1/GS-2 | Socket for Regurlator to Hose |
| 3. | AP-1/AP-2 | Plug for Hose to Hose |
| 4. | AS-1/AS-2 | Socket for Hose to Hose |

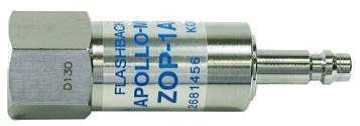

| 5. | ZOP-1AE/ZOP-2AE | Flashback arrestor for Equipment to Hose |
Model name -1:for Oxygen, -2:for Fuel Gas
Various connection type will be available. For details, Please ask to us.
