Description

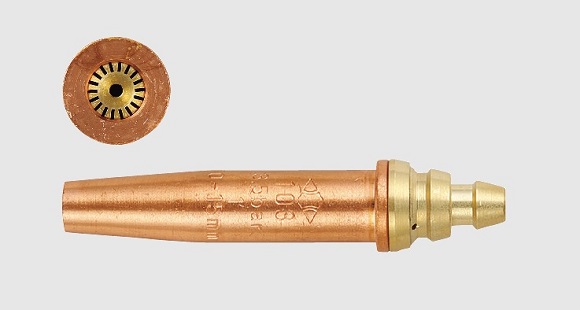

Gas mixing cutting nozzle.
Features
- Ethylene
Lists
| Des. | Article no. | Cutting range | Cutting speed | Pressure Mpa(Kgf/cm 3 ) | Consumption (m3/h) | ||||
| mm | mm/min. | Cutting O2 | Heating O2 | Ethylene | Cutting O2 | Heating O2 | Ethylene | ||
| 00 | DB11781B | 0-5 | 660 | 0.3(3) | 0.3(3) | 0.02(0.2) | 0.69 | 0.8 | 0.46 |
| 0 | DB11781C | 5-10 | 660-550 | 1.2 | |||||
| 1 | DB11781D | 10-15 | 550-490 | 0.35(3.5) | 0.35(3.5) | 2.1 | |||
| 2 | DB11781E | 15-30 | 490-400 | 0.025(0.25) | 3.4 | 0.9 | 0.5 | ||
| 3 | DB11781F | 30-40 | 400-350 | 4.3 | |||||
| 4 | DB11781G | 40-50 | 350-320 | 0.035(0.35) | 7.3 | 1.2 | 0.66 | ||
| 5 | DB11781H | 50-100 | 320-200 | 0.4(4) | 0.4(4) | 6.5 | |||
| 6 | DB11781J | 150-250 | 200-150 | 11 | 2.2 | 1.28 | |||
| 7 | DB11781K | 250-300 | 150-80 | 0.45(4.5) | 0.45(4.5) | 15 | |||
