Description

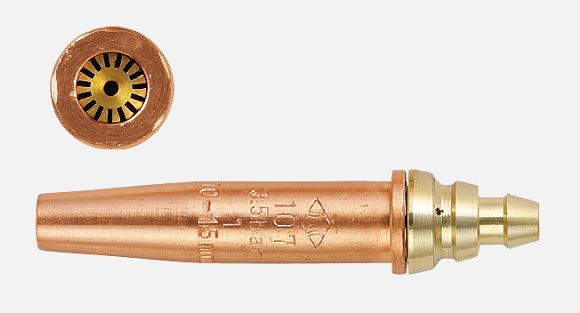

Gas mixing cutting nozzle.
Features
- Natural gas
Lists
| Des. | Article no. | Cutting range | Cutting speed | Pressure Mpa(Kgf/cm 3 ) | Consumption (m3/h) | Kerf width | ||||
| mm | mm/min. | Cutting O2 | Heating O2 | Natural gas | Cutting O2 | Heating O2 | Natural gas | mm | ||
| 00 | DB11881B | 0-5 | 660 | 0.3(3) | 0.3(3) | 0.015(0.15) | 0.69 | 1.22 | 0.74 | 1 |
| 0 | DB11881C | 5-10 | 660-550 | 1.2 | 1.3-1.5 | |||||
| 1 | DB11881D | 10-15 | 550-490 | 0.35(3.5) | 0.35(3.5) | 2.1 | 1.7-1.8 | |||
| 2 | DB11881E | 15-30 | 490-400 | 3.4 | 1.39 | 0.84 | 2.0-2.1 | |||
| 3 | DB11881F | 30-40 | 400-350 | 4.3 | 2.3-2.4 | |||||
| 4 | DB11881G | 40-50 | 350-320 | 6.5 | 1.9 | 1.15 | 2.7-2.9 | |||
| 5 | DB11881H | 50-100 | 320-200 | 0.4(4) | 0.4(4) | 11 | 3.4-3.5 | |||
| 6 | DB11881J | 100-150 | 200-150 | 15 | 2.31 | 1.4 | 3.9-4.0 | |||
| 7 | DB11881K | 150-250 | 150-80 | 0.45(4.5) | 0.45(4.5) | 22 | 4.4-5.1 | |||
| 8 | DB11881L | 250-300 | 80-45 | 28 | 5.8-6.8 | |||||
