Description

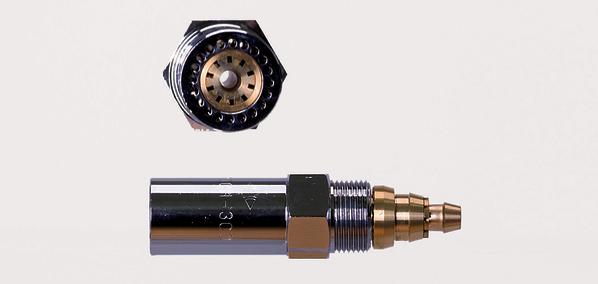

Special nozzle.
Features
- Propane
Lists
| Des. | Article no. | Cutting range | Cutting speed | Pressure (Mpa) | Consumption (m3/h) | Kerf width | ||||
| mm | mm/min. | Cutting O2 | Heating O2 | Propane | Cutting O2 | Heating O2 | Propane | mm | ||
| Epoch | ||||||||||
| 300 | DB19481A | 100 mm | 250-290 | 0.4 | 0.05-0.06 | 0.03-0.04 | 27 | 3.3-4.0 | 2.3-2.7 | 5.5-7.0 |
| 200 mm | 170-190 | 0.45 | 30 | 6.0-8.0 | ||||||
| 300 mm | 130-150 | 0.5 | 0.06-0.07 | 0.04-0.05 | 32 | 4.0-4.8 | 2.7-3.1 | 7.0-9.0 | ||
| 600 | DB19481B | 300 mm | 130-150 | 0.4 | 8.0-12 | |||||
| 400 mm | 80-90 | 0.6 | 0.07-0.1 | 0.05-0.06 | 70 | 4.8-7.0 | 3.1-3.4 | 10-13 | ||
| 500 mm | 60-70 | 0.7 | 80 | 11-14 | ||||||
| 600 mm | 50-60 | 1.0 | 110 | 12-15 | ||||||
| Epoch-Z | ||||||||||
| Z200 | DB19532A | 180 mm | 180-220 | 0.7 | 0.06-0.2 | 0.03-0.04 | 23 | 4.5-7 | 1.6-2.0 | 5.1-4.8 |
| 200 mm | 170-210 | |||||||||
| 230 mm | 150-180 | |||||||||
| Z300 | DB19532B | 230 mm | 150-190 | 0.03-0.05 | 34 | 4.5-9 | 1.6-2.5 | 6.2-5.8 | ||
| 250 mm | 140-180 | |||||||||
| 280 mm | 135-160 | |||||||||
| 300 mm | 125-150 | |||||||||
| 320 mm | 100-120 | |||||||||
| 350 mm | 70-95 | |||||||||
| Z400 | DB19532C | 350 mm | 70-95 | 0.04-0.06 | 50 | 2.0-2.7 | 7.1-6.5 | |||
| 400 mm | 100-130 | |||||||||
