Description

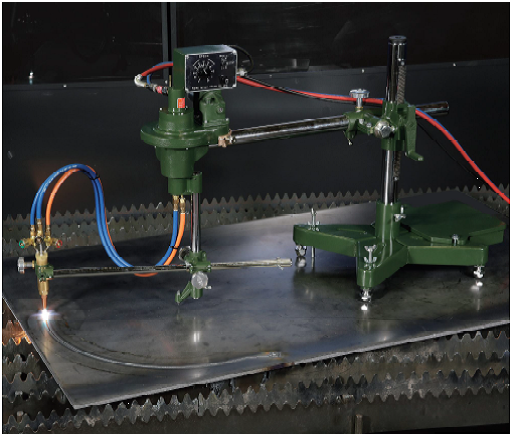

The IK-70 is a portable automatic oxy-fuel circle cutting machine, especially designed for cutting circles, with or without bevel, on even surfaces allowing to cut circles with a diameters of 30-1000 mm. The accordingly dimensioned base late rests upon four movable balls and allows a fast positioning of the IK-70. Another advantage is the compact and solid control system which improves the speed stabilization especially at extremely low travel speeds.
Features
- Compact control unit
- Low weight and high stability
- No entangling hoses due to the rotating gas manifold
- Simple positioning mechanism
- Variable operation possibilities
Scope of delivery
- Cutting machine IK-70
- Cutting nozzles (5-30 mm material thickness)
- Connecting lead (5 m)
- Tool set
- Operation instructions
Technical specifications
| IK-70 | ||
| Model | 600 | 1000 |
| Cutting thickness | 5-50 mm (in case of #4 cutting tip) | |
| Bevel cutting angle | 0-45° | |
| Cutting diameter | φ30-600mm | φ150-1000 mm |
| Cutting speed | 0.2-6 rpm | 0.04-1.5 rpm |
| Speed control Method | PWM control | |
| Motor | 15WDC Motor | |
| Type of gas | Acetylene, propane | |
| Weight | 24.0 kg | 55.0 kg |
