Description
High quality multi-purpose cutting

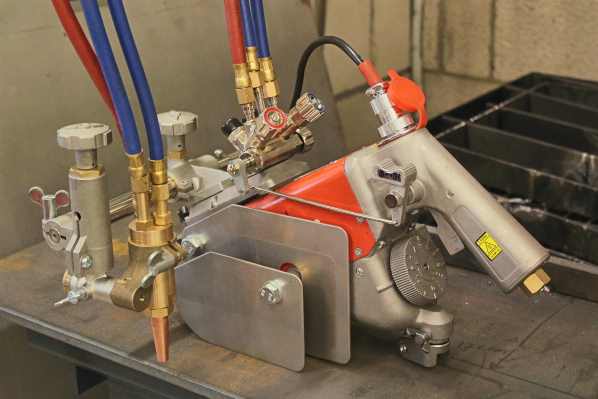

The IK-93 HAWK gas cutter is a portable gas cutting apparatus developed primarily for the purpose of high quality straight line, hand guided cutting. In addition to featuring high cutting quality, it also demonstrates unprecedented smooth operation and mobility. Designed with the emphasis on ease of operation, the trigger is placed higher to facilitate use at the inside or outside radius of curves and the unit features a convenient speed adjustment dial. The IK-93 HAWK allows travel in both forward and reverse directions.
Features
- Multiple use oxy fuel machine
- Performs straight line, hand guide and circle oxy fuel cutting.
- Pistol shape control grip
- Operator can control all functions including cutting oxygen, clutch operation and speed adjustment with just one hand.
- Extendable 1800mm track sections
- Cut longer parts.
- Tracer guide option
- Bevel edge of plate without track.
- Torch angel can be set from 0 to 45º using graduated bevel collar.
- High quality tips Koike's superior design Series 100 torch tips are
- included to ensure fast, smooth cuts.
Technical specifications
| SPECIFICATIONS IK-93 HAWK | |
| Cutting thickness | 5-100 mm |
| Cutting speed | 100-1000 mm/min |
| Speed control Controller | IC (dial adjustment) |
| Heat shield | Double-plate construction |
| Clutch | Trigger type |
| Direction changing | Forward/reverse switch |
| Overall length | 380mm |
| Weight | 7.5kg |
| Cutting tip - 102 for acetylene, 106 for LPG | KOIKE 100 series |
