Description

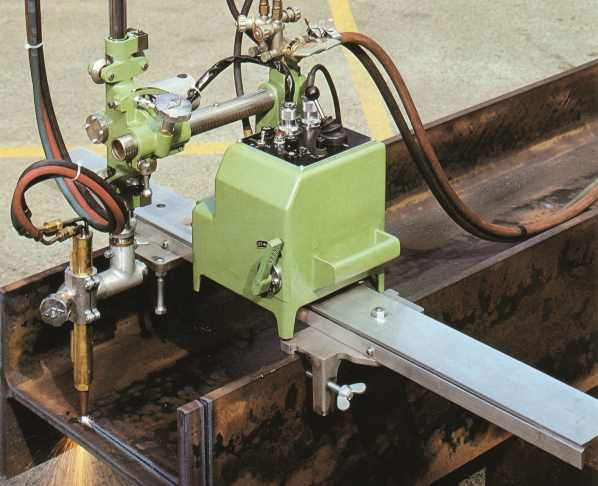

The Mini-Mantis II is a portable automatic H-beam oxy-fuel cutting machine. It is possible to perform fast and precise web and flange cuts on beam profiles. The machine features two drive motors: one for web cutting, the other for flange cutting. For cutting webs the carriage travels along the guide rail, for cutting flanges the torch is moved by a vertical gear rack. It eliminates the need for secondary operations.
Features
- Guide rail and main unit are connected (short installation time)
- Low weight (It is more economic to transport the machine to the work piece)
- Diagonal cuts at the web and flange as well as beveling is possible till 45°
- SCR control unit for steady feed
Scope of delivery
- Cutting machine Mini Mantis II
- Cutting nozzles (5-30 mm material thickness)
- Connecting lead (5 m)
- Tool set
- Operation instructions
Technical specifications
| Mini-Mantis II | ||
| Cutting thickness | 5-30 mm | |
| Cutting speed | 100-700 mm / min | |
| Effective Cutting Range(Right angle) | Web | 150-600mm with 600 rail |
| Flange | 150-400mm with ST-400 | |
| Bevel Cutting Angle | Web | 0-35° |
| Flange | 0-45° | |
| Drive Method | Web | friction |
| Flange | Rack and Pinion | |
| Speed Control Method | PWM Control | |
| Machine dimensions (WxHxD) | 500 mm x 760 mm x 1050 mm | |
| Type of gas | Acetylene, propane, natural gas and mapp gas | |
| Weight | 20.0 kg (Main body + 600 rail) | |
