Description

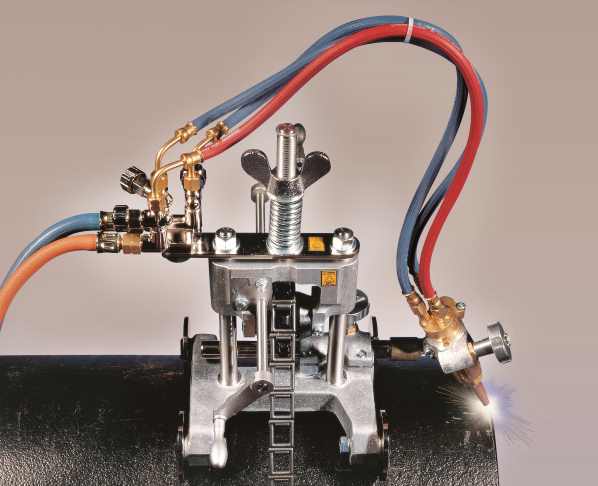

The Picle-1-II is a manual driven portable pipe cutting machine for trimming and beveling pipes. The chain drive is effected over a large worm and a worm wheel. The low transmission ratio leads to an absolutely frictionless feed. The transmission chain consists of simply constructed, smoothly interlocking chain links. Due to the chain link’s easy insertion and removal a fast exchange for varying pipe diameter is guaranteed. The adjustments for bevel cutting result from an angle scale at the torch bracket.
Features
- Standard chain for cutting pipe diameter of 114 - 600 mm
- The low transmission ratio leads to an absolutely frictionless feed.
- The torch adjustments for bevel cutting are effected over an angle scale.
- Easy operation and attendance
- Low weight
Scope of delivery
- Cutting machine Picle 1-II
- Cutting nozzles (5-30 mm material thickness)
- Chain (2.4M)
- Tool set
- Operation instructions
Technical specifications
| Picle-1-II | |
| Cutting thickness | 5-30 mm |
| Bevel Cutting | 0-45° |
| Effective Cutting Diameter | 114-600mm |
| Drive Method | manual |
| Height | 410 mm |
| Wheel width | 210 mm |
| Type of gas | Acetylene, propane |
| Weight | 8.5 kg |
