Description

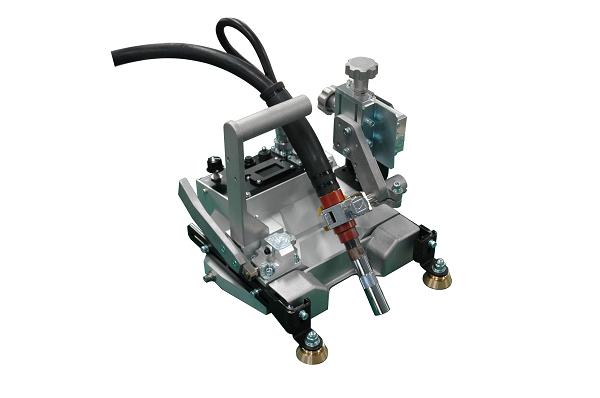

WEL-HANDY MULTI NEXT is a high performance type of welding carriage that is equipped with a powerful driving engine and is available with diversifying application of welding carriage. Due to the newly developed gearbox, the durability of the series best driving system has been secured.
Features
- Powerful Driving System (New Development)
- Light Action Lever for up/down (New Development)
- Industry Leading Adsorption Power
- Straight Torch / Curved Torch common used Clamp (New Development)
- Guide Roller used for Multiple Purpose
- High Durability Case made of Aluminum Die-Casting (New Development)
- Control Device with Excellent Stability and Expandability
- Operation Panel Design Easy to Use
- Auto Stop Function stops at Overload
- Optional Slide Unit with Easy Layout (New Development)
Technical specifications
| WEL-HANDY MULTI NEXT Main Specification | |||
| Model name | WEL-HANDY MULTI NEXT | WEL-HANDY MULTI NEXT TACK | WEL-HANDY MULTI NEXT WEAVING |
| Driving System | 4 Wheel Driving | ||
| Traction | Horizontal Fillet 16kg (Standard Magnet / Strong Magnet) / Inferior Fillet 16kg (Including Body Weight) | ||
| Gap (Floor ~ Bottom) | 5.5 mm> | ||
| Magnet Up and Down | Magnet Release/ LIGHT Action Lever at Body Side | ||
| Magnet Type | Permanent Magnet (Standard 20 kg, Strong 50 kg) |
Permanent Magnet (Strong 50 kg) | |
| Travel Speed | 50 - 1500 mm/min | ||
| Tracking Method | Vertical Tracking by Guide Roller / Edge Tracking by Guide Roller | ||
| Applicable Posture | Horizontal Fillet & Inferior Fillet by Strong Magnet | Horizontal Fillet & Inferior Fillet | |
| Start Interlocking Welding | 〇 | ||
| Automatic Stop by Limit Switch | 〇 | ||
| Arc Test | 〇 | ||
| Arc Stabilization Time (sec) | - | 0 - 10.0 | |
| Crater Current Correspondence | - | 〇 | |
| Tack | - | 〇 | |
| Weaving Speed (mm/min) | - | 400 - 1500 | |
| Weaving width (mm) | - | 0.0 - 100.0 | |
| Weaving Stop time Left, Middle, Right (sec) | - | 0.0 - 10.0 | |
| Body Weight (kg) | 8.5 (8.7kg for Strong Magnet type) | 8.8 | 10.8 |
| Body Dimensions Width × Depth × Height(mm) |
280×280×250 | 310×280×250 | |
| Input Power Supply | Single-phase AC100～240V 50Hz/60Hz | ||
